• Three phase motor 400 V, 50 Hz, 1,450 rpm, electric motor with oil filling
• Insulating category F = 155 °C, protection category IP68
• Thermo-control for each phase as overheating protection
• Motor housing in stainless steel V4A 1.4404
• Gearbox housing and motor cover made of cast iron coated with 2-component plastic paint
• Planetary gear
• Multi-edged, progressively pitched propeller made of stainless steel, propeller rotational speed 273 rpm
• As standard highly wear-resistant slide ring sealing
• Electric cable: 10 m with cast screw connection and 10 stainless steel cable clamps with rubber inserts and stainless steel shackles
• Special electric cable with source-bodies as protection against humidity along the length of the cable, with interior FEP sheath and exterior polyurethane sheath
• Stainless steel sliding guide with depth stop for guide rail 100 x 100 mm
• Submersion depth max. 10 m (other depths on request)

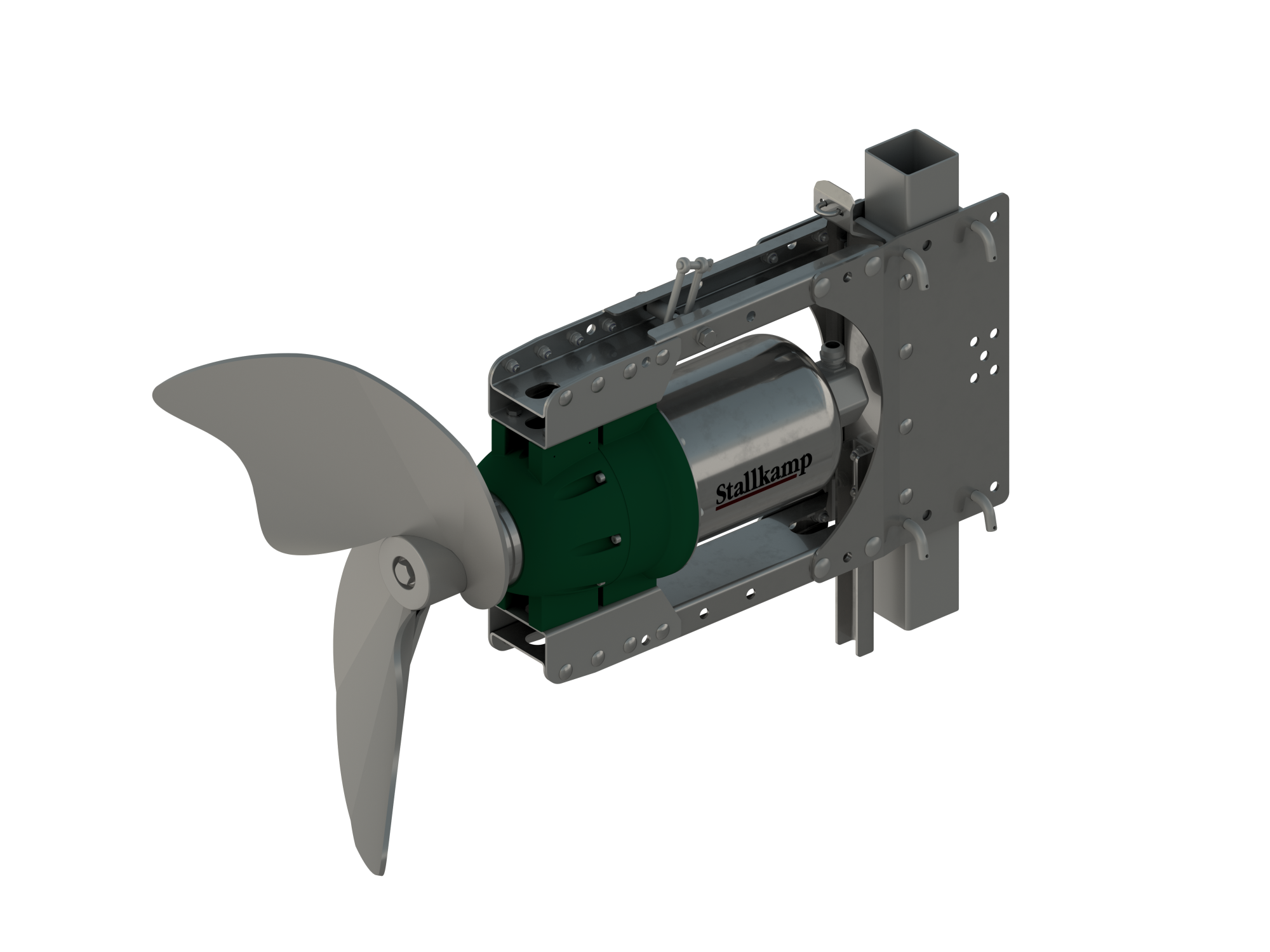

Our 2 blade optimised agitator for:

• thick manure like Bull slurry and bio-mass with long fibres in biogas plants.

• Individually adjustable submersion depth
• Liquid jet and direction of fl ow can be adjusted as required
• High-powered agitation
• Eco-friendly and economical operation
• Optimum media homogenisation
• Excellent value for money
• High quality from our in-house manufacturing
• A wide range of accessories
